1.If you buy NO RAM NO SSD NO WIFI configuration of the mini pc, there is no RAM SSD WIFI installed, it is a barebones machine containing only the chassis and motherboard + power adapter.

Please buy RAM SSD separately to use the mini pc properly!

2. Default installation of the trial version of the Win10 system, if you need to install other systems, please contact customer service in a timely manner to note! (Once the mini pc is sent out, do not support the change of system!)

3. After receiving the mini pc, please do not arbitrarily change the BIOS, (because arbitrarily change the BIOS lead to problems with the product, please be responsible for their own!)

4. Please communicate with customer service before purchase, your purchase needs and use requirements! Thank you!

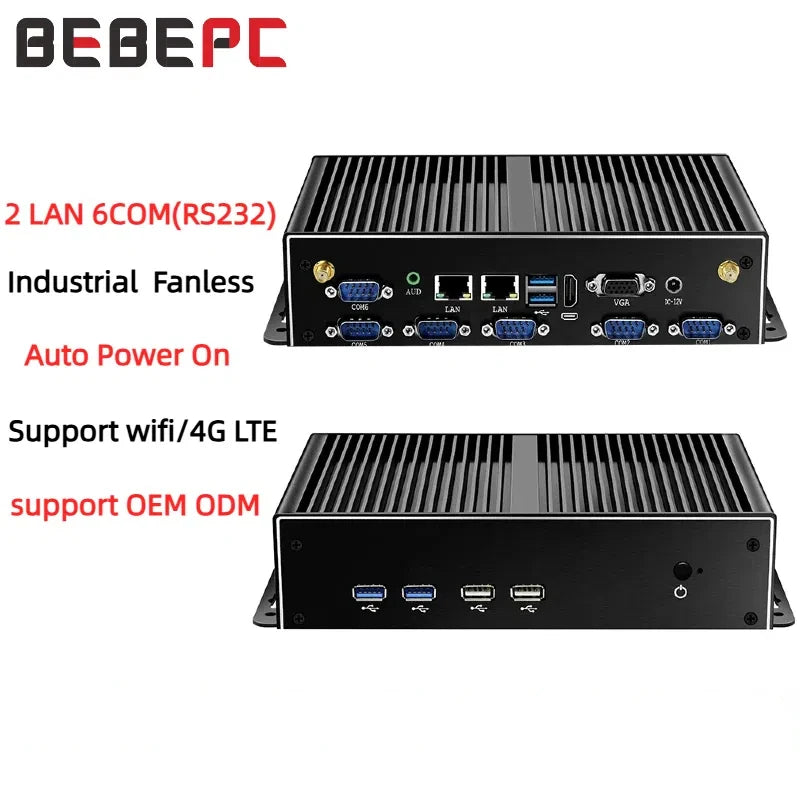

2-LAN 6*Mini PC Descriptions

1. Compatible with 1 slot DDR3L 1.35V memory, max to 8GB;

2. Support 1x mSATA SSD and one 2.5 inch hard drive;

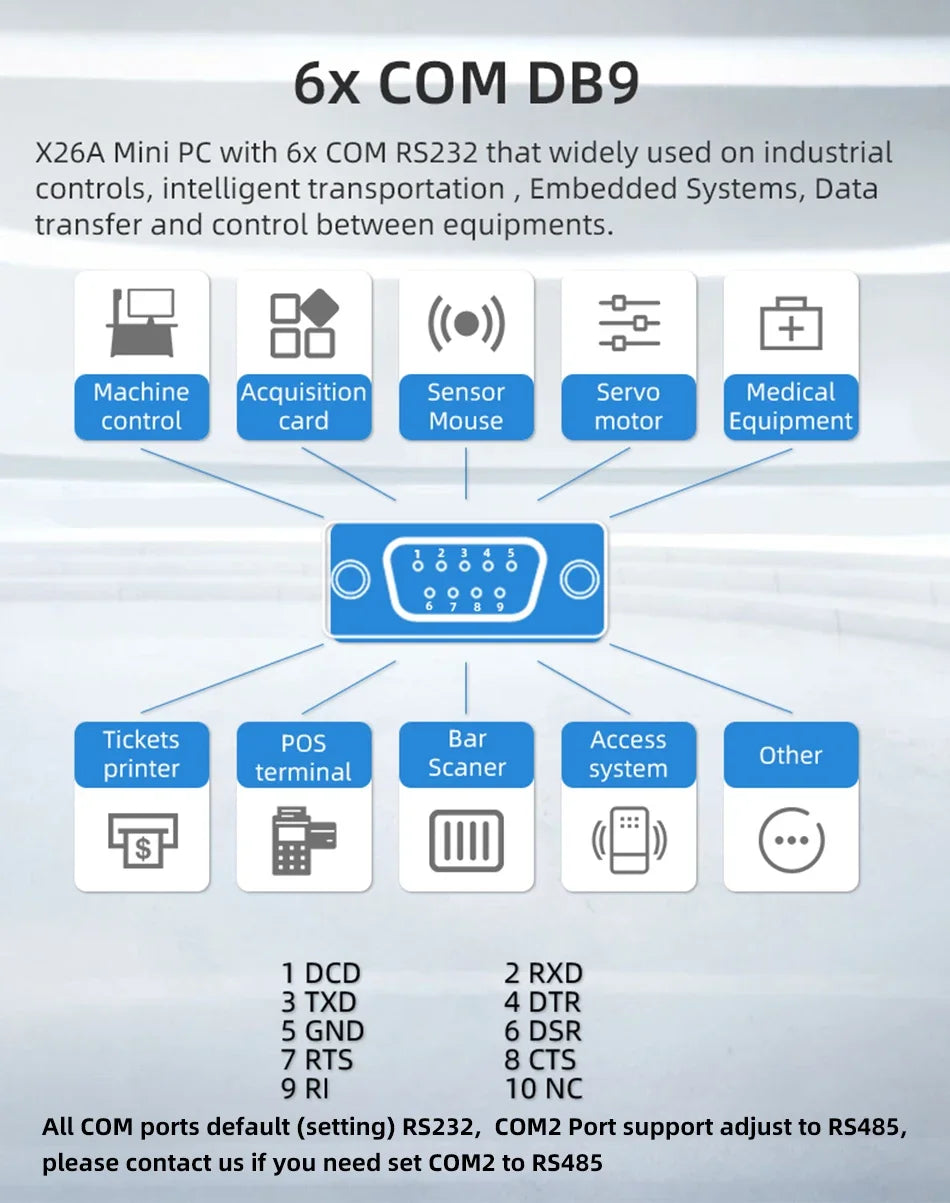

3. With 2*LAN 6* Serial ports, 8USB type can change two COM ports from RS232 to RS485

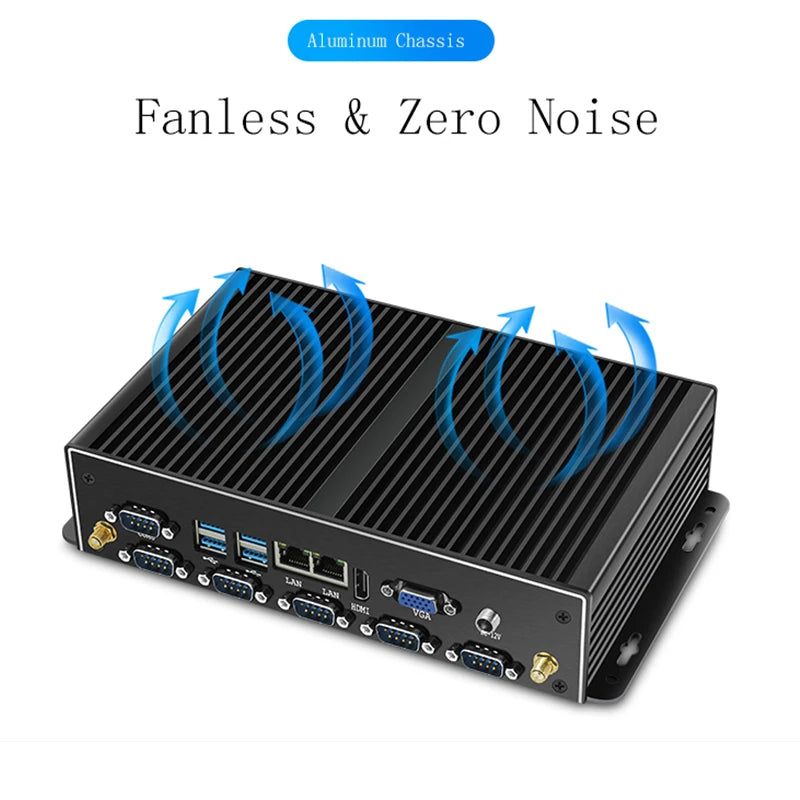

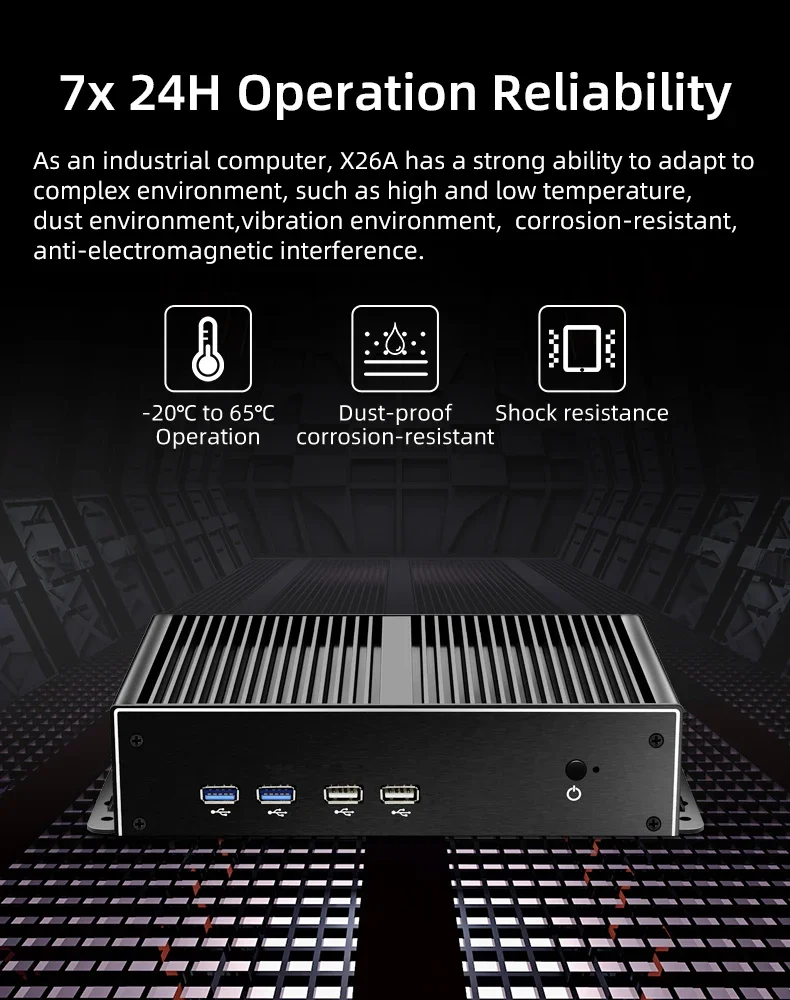

4. Fanless passive cooling with on-board aluminum radiator;

5. Support virtualization, wake-on LAN, automatically power on function.

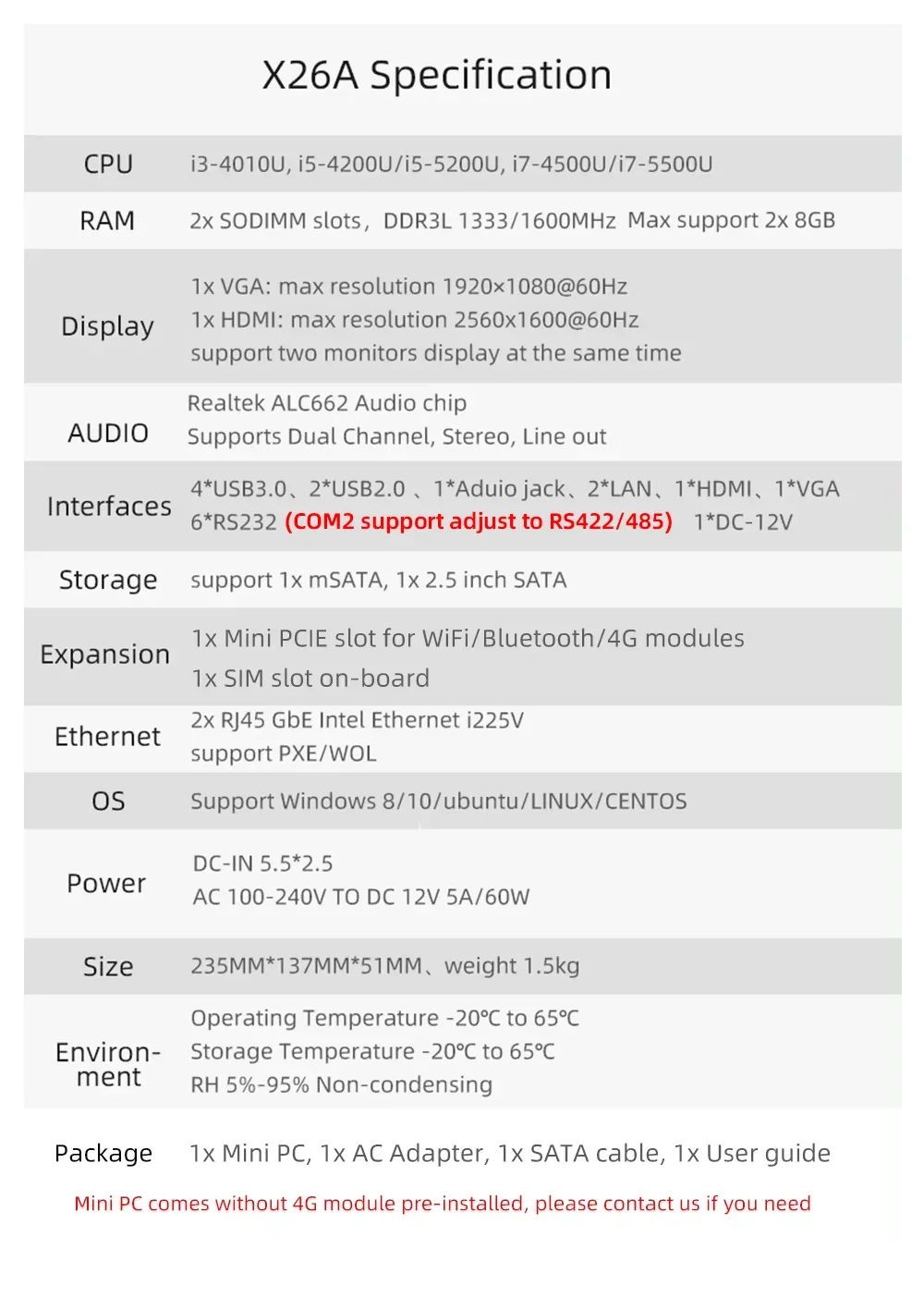

About X26A 2LAN 6COM 6USB Product Core Parameters:

1, J1900, J2900 Single memory DDR3L Maximum support 8G

i211 network card bios com2 adjustable 485 serial port

2, 2955U, 3805U, i3-4005U, i5-4200U, i3-5005U, i5-5200U, i7-4500U, i7-5500U Dual Memory DDR3L Maximum support 16G ;

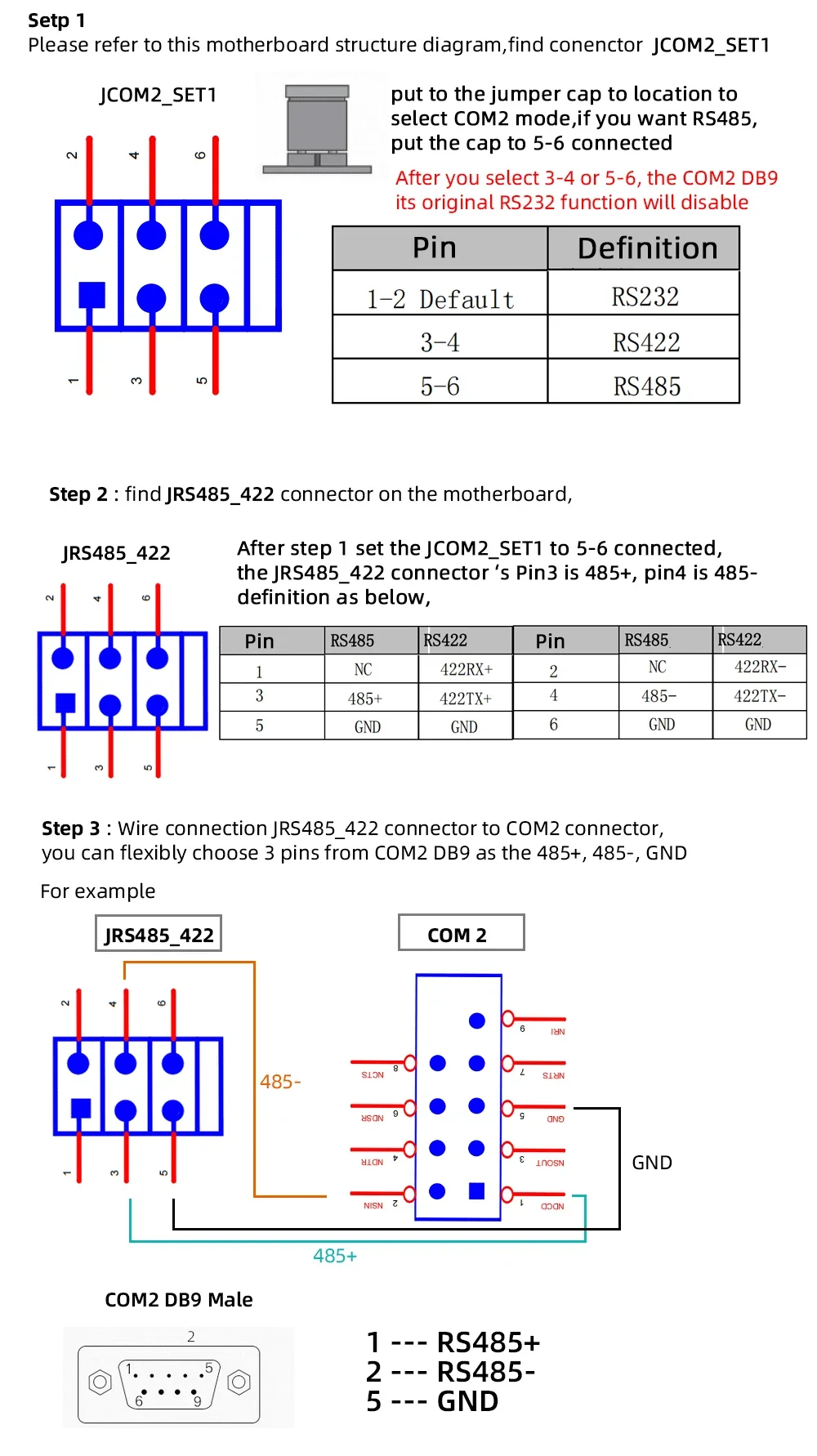

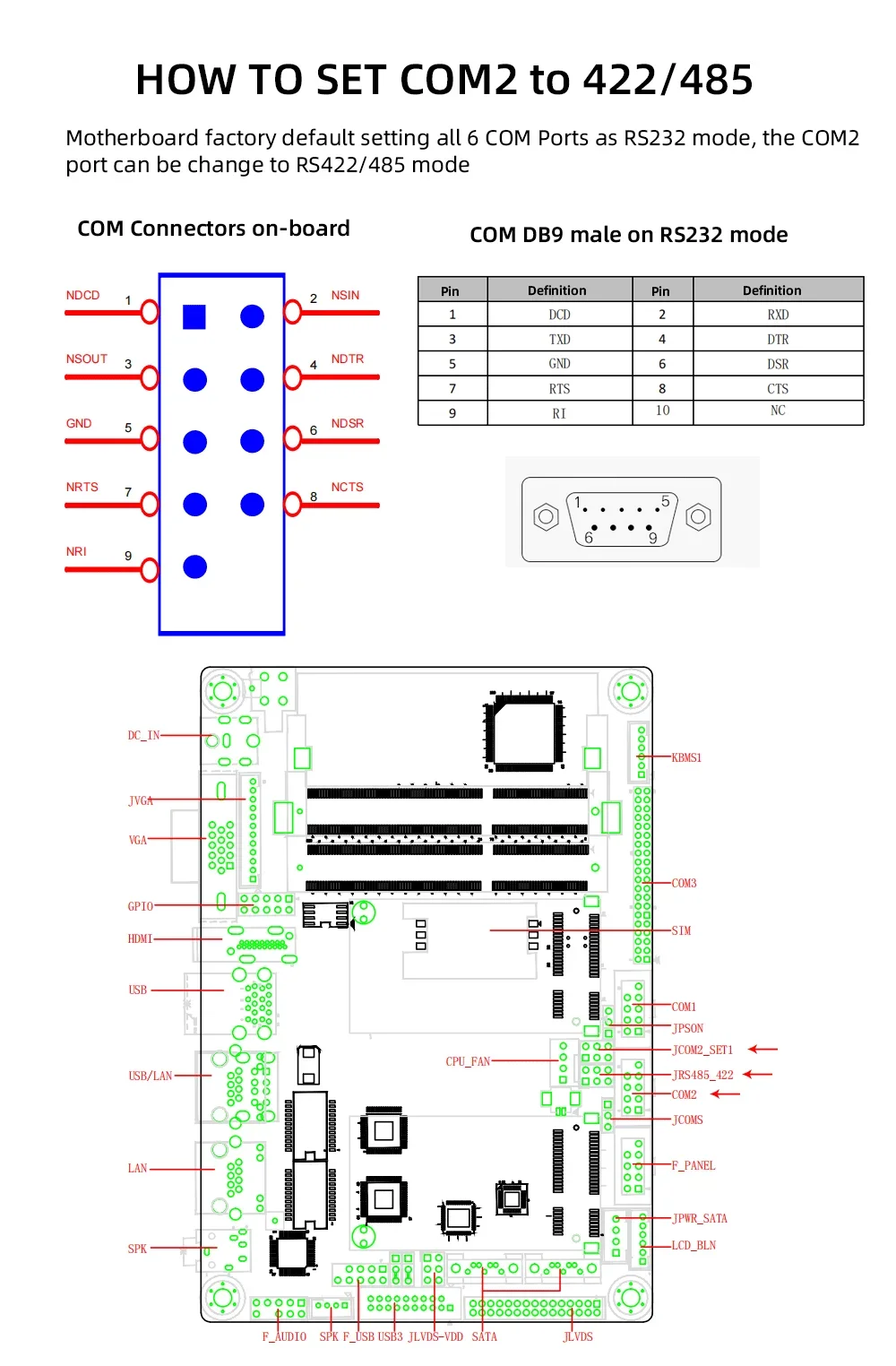

Jump cap COM2 can be set rs-485 serial port;

In addition to i3-5005U is i211 network card, the rest are i225 network card.

3, i225 NIC CPU does not support the installation of Win7 system, support the installation of Win10-64 bit system.

Packing list:

1x Mini PC

1x Power Adapter

2x WIFI antennas

1x User Manual

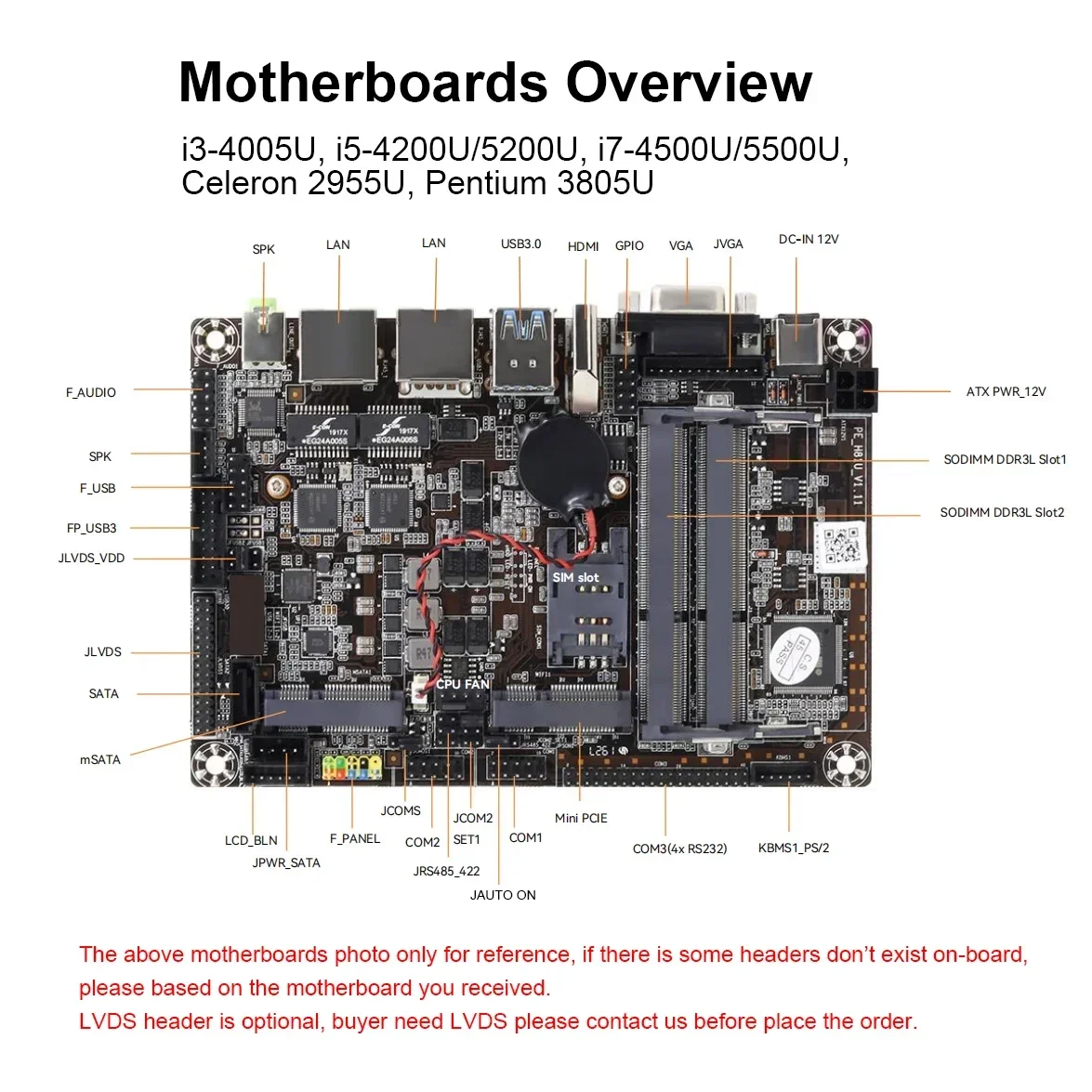

Motherboard and interface:

Support OEM/ ODE

For bulk orders and customization, (such as logo) please contact us, we'll check the best price for you.
